SONY EFFIO-P DSP Security Cameras from China manufacturer

Payment Terms:	T/T,L/C,WU
Special Groups:	New CCTV Product (136) Sony Effio-P Security Cameras (9)
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: IGV-IR79EPR

Production Capacity: 9,000pcs/month

Delivery Date: 7 days

CCD Pixel: Sony 662/663 + Sony Effio-P

Lens: Varifocal lens6-60mm (5-50m...

LED: ￠5X42PCS , 40m IR range

Means of Transport: Ocean,Land,Air

Packing: OEM

Brand Name: IGreenView / OEM

Resolution: 750TVL / 700TVL

WDR: Real WDR function (Wide Dyn...

● 700 TVL Sony Effio-p super WDR security camera
● Real WDR function (Wide Dynamic Range 128 db)
● Varifocal lens 4-9mm(2.8-12mm Optional)

What's Sony Effio-p Super WDR:

Wide Dynamic Range (WDR) technology helps to get detailed information from the dark part of the image without saturation from the bright part. There is no limitation of zone area with the WDR function and the color image is crisper than using tranditional BLC functions.

Sony Effio-p super WDR is double scan. It combines two fields which are hgih shutters speed exposure in bright aras and low shutter speed exposure in dark areas into one composite image! Below, you can see the WDR on picture!

SONY EFFIO-P DSP CCTV Camera IGV-IR79EPR Features:

● 1/3'' Sony CCD (960H) and Sony Effio-P DSP

● Real WDR function (Wide Dynamic Range 128 db)

● ATR-EX (Adaptive Tone Reproduction)

● 2D & 3D Noise Reduction

● Motion Detection /Privacy Mask

● HLC (High Light Compensation)

● OSD Menu

● Varifocal lens 4-9mm(2.8-12mm Optional)

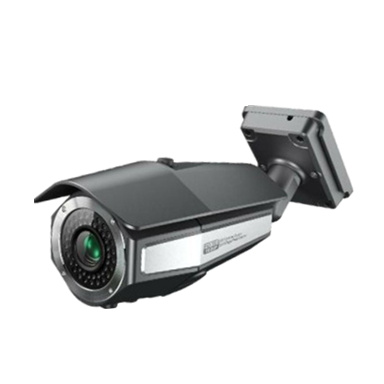

SONY EFFIO-P DSP CCTV Camera IGV-IR79EPR Picture:

SONY EFFIO-P DSP CCTV Camera IGV-IR79EPR Specification:

Model No.	IGV-IR79EPR
Image Sensor	1/3" Sony Dual Scan 700TVL (ICX663AK+CXD4129)
Scanning System	2:1 Interlace
Total Pixel	*PAL:967H582V NTSC:967H494V*
Horizontal Resolution	700TVL
Min. Illumination	0.05Lux at F1.2, 0Lux (IR ON)
S/N Ratio	>54dB
Video Output	CVBS:1.0Vp-p/75Ω Composite
Gamma Correction	0.45
Frequency	H:15.734 KHz/V:15.625KHz/V:50Hz
Sync. System	Internal Synchronization
Day&Night	Auto/ Color/ B/W
Shutter Speed	1/50 -1/10,000 SEC
Scanning System	2:1 Interlace
White Balance	ATW/PUSH/USER1/USER2/ANTI CR /MANUAL/PUSH LOCK
BLC	OFF / BLC / HLC
Mirror	Flip Horizontal
Motion Detection	20 Area Setting
Privacy	20 Area Setting
Mirror Function	Horizontal/Vertical
On Screen Display	Chinese,English,French,German,Russian,Japanese,Spanish,Portuguese
Sharpness	On/Off (Level Adjustable)
ATR-EX (WDR)	On/ Low/Middle/Full
Noise Reduction	3D/2D-DNR
IR Led	￠5X42PCS , 40m IR range
Lens Type	Varifocal lens 4-9mm(2.8-12mm Optional)
Weight	0.9 kg
