Model No.: IGV-IR24

Production Capacity: 20000

Delivery Date: 7

CCD Pixel: 1/3 Sony Super HAD CCD

Water resistance: IP67

Means of Transport: Ocean,Land,Air

Packing: OEM

Brand Name: IGreenView / OEM

Resolution: 540 / 420 TVL

Lens: 3.6/6/ 8mm Lens optional

1/3''Sony Super HAD CCD;Anti-Exposure,Anti-Thunder,Wide voltage design (9-20V)

NEW Outdoor cameras (IGV-IR24) Main Features :

● Anti-Exposure
● Day & Night, Color B/W change, IR, waterproof camera;
● Internal wiring 3D adjustable
● Wide voltage design (9-20V)
● High efficiency low loss IR LED 28Pcs,IR Distance 15-25M
● Anti-Thunder
● Standard F1.2 high-definition 3.6/6/8mm lens optional
● Double glass steel coating technology
● Waterproof grade IP67
● 300mA/DC12V

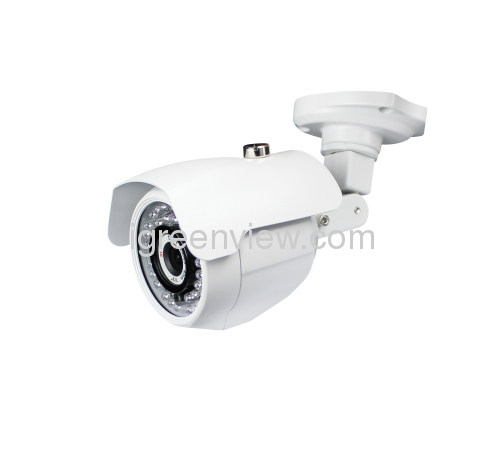

NEW Outdoor cameras (IGV-IR24) Picture:

Specification:

Model	IGV-IR24HR	IGV-IR24LR	IGV-IR24SR
CCD Pixel	1/3''Sony Super HAD CCD		14/" Sony Super HAD CCD
Effective pixels	NTSC:811x508,PAL:795x596	NTSC:768x494,PAL:752x582	NTSC:510x492,PAL:500x582
Resolution	540 TVL	420TVL
Min. illumination	0lux(IR on)
Sycn.system	Internal/Line lock
Scan system	2:1 Interlace
S/N ratio	more than 48dB
Lens	*3.6/6/8mm Lens optional*
IR distance	15-25M
Water resistance	IP67
Electronic shutter	NTSC:1/60-1/100000sec;PAL:1/50-1/100000sec
White balance	ATW
Gamma	0.45(default)
Video output	1.0Vp-p Composite Video Output, 75 Ohm
Power supply	DC12V± 10%
Power consumption(Max)	300mA/DC12V(IR ON)
