Product Detail

Model No.: IGV-WL15

Production Capacity: 10,000Pcs/Month

Delivery Date: 5-7 days

Image Sensor: 1/3" SONY Super HAD CCD II

lens: Big fixed lens:4/6/8/12/16/...

Means of Transport: Ocean,Land,Air

Packing: OEM

Brand Name: IGreenView / OEM

Horizontal resolution: 700TVL/ 540TVL/ 480 TVL

infrared light: dot infrared light technolo...

White Light waterproof Camera-Low power,long life,energy saving;
No color cast during the day:color is more bright-colored, and the picture is truer

White Light waterproof Camera (IGV-WL15) Festure:

• Patent Design, Novel in fashion, Beautiful style with Science fiction sense.

• The Third Generation of array type illuminati chip IR LED or White LED.

• IP 66 Waterproof and sunproof, indoor or outdoor using.

• Built-in Oversea Big iris fixed lens: 4mm/6mm/8mm/12mm/16mm/25mm

• Surveillance distance:10-150m.

• Patent Design for easier Change the Lens size and LED angle,

Convenient for Installers installation.

• Anti-fogging and anti-reflection

• Third Generation of Array led, IR using 80% power, White LED using 60% power,

• Different LED lens size with different Angle of LED. so can suit for the Surveillance

• White light technology/IR technology/

White light technology advantages:

1. No color cast during the day: color is more bright-colored, and the picture is truer.

2. True color during the night: increased the color information, night image resolution higher, image sense Stronger, to the benefit of investigation.

3. Low power, long life,energy saving.

4. Lighting and warning function: White light camera with auxiliary lighting functions, can play the function of the lamp in the night.

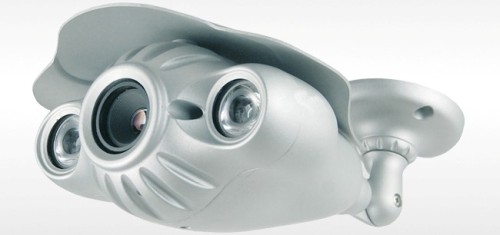

White Light waterproof Camera (IGV-WL15) Picture:

White light technology contrast effect image:

Specification:

Model	IGV-WL15EFR	IGV-WL15HR	IGV-WL15MR
Pickup Device	*1/3" SONY Super HAD CCD II*
Picture Pixels	PAL: 752(H) X 582(V)	PAL: 752(H) X 582(V)	PAL: 500(H) X 582(V)
Picture Pixels	NTSC: 768(H) X 494(V)	NTSC: 768(H) X 494(V)	NTSC: 512(H) X 492(V)
Scanning Area	4.8mm(H) X 3.6mm(V)
Horizontal Resolution	*700TVL*	*540TVL*	*480TVL*
Signal System	PAL/NTSC
Minimum Illumination	0 Lux (LED ON)
S/N Ratio	>48 dB
Gamma Collection	0.45
Electronic Shutter	PAL:1/50-1/100000 sec NTSC: 1/60-1/100000 sec
Gain Control	Auto
Back Light Compensation	Auto
Back Light Compensation	Auto
White Balance	Auto
Protection Rate	IP 66
Sync System	Internal Synchronization
Operation Temperature	-20℃~50℃
Lens Size	Big fixed lens:4/6/8/12/16mm option
Power In	DC12V,2A
Video Output	1.0Vp-p/75Ω(BNC)
Dimension	24014075mm
Weight	708g
