Introduction:
The PoE switch provides power and data from a single point,using Power over Ethernet(PoE)over a single Cat-5 cable.LS5000 series can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power.Advanced auto-sensing algorithm gives power to 802.3af end devices,In addition,the PoE seitch automatically determines PoE requirements,speed,duplex,and cable type using AutoUplink.Easy to operate and reliable.
The PoE switch is ideal for powering PoE devices such as IP cameras,WLAN access points,IP phones,office access control systems,and other PD devices and offers a line of high quality products that provide a total solution for ethernet application in different environments.

PoE switch IGV-POE-O4 Features:

• Fully IEEE802.3af/IEEE802.3at standard compliant
• Support PoE power up to 15.3W/25.5W for each PoE ports
• Auto detect powered device(PD)
• Long distance PoE data transmission.(250m)
• Safe and reliable power to most of PoE end device
• Lighting-proof and Compact design
• Plug & Play.No configuration required
• Reliable and great value

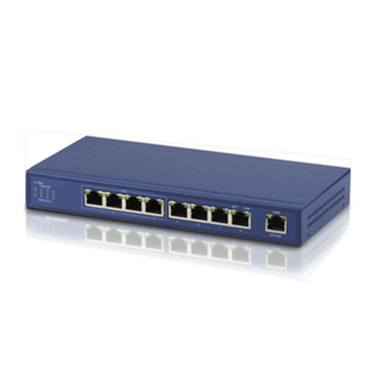

PoE switch IGV-POE-O4 Picture:

PoE switch IGV-POE-O4 Specification:

Netword Standards	IEEE 802.3i 10BASE-T
	IEEE 802.3u 100BASE-Tx
	IEEE 802.3x Flow Control
	IEEE 802.3af/at Power over Ethernet
PoE power	15.4W/25.5W per port(IEEE802.3af/IEEE802.3at)
	Wiring:Data & power provided over pairs 1/2 and 3/6 or 4/5(+) and 7/8(-)
	Cable:UPT cat.5 or higher
Processing types	Store-and-forward
	Half-duplex back pressure and IEEE802.3x full-duplex flow control
Address database Table Size	8000MAC address
Buffer memory	48Kb embedded memory per unit
Netword Latency	Less than 20μs for 64-byte frames in Store-and-forward mode for 100Mbps to 100Mbps transmission
Input	48VDC input
PoE power consumption	15.4W/25.5W per port(IEEE802.3af/IEEE802.3at)
Overload current protection	Present
Casing	Metal case
Dimension	215(L) * 106(W) * 33(H)mm
Weight	0.63KG
Installation	Rack mounting
LED Indicators	System:Power,PoE Maximum power
	Per port:Link.Activity,.Speed,PoE active,PoE error

Poe switch Application:
