1600*1200 Resolution IP cameras from China manufacturer

Payment Terms:	T/T,WU,
Special Groups:	Special Offer (40)
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: IGV-IP14

Production Capacity: 6,000pcs/month

Delivery Date: 3-10 days

Image Sensor: 1/4" Progressive Scan CMOS

Management: J-Suveillance ,Client,Inter...

Two Way Audio: Support

Means of Transport: Ocean,Land,Air,

Packing: OEM

Brand Name: IGreenView / OEM

Effective Pixels: 1600(H)×1200(V)

ONVIF Support: Milestone, Digifort, Axxon,...

IR Range: Φ5 42pcs IR Leds IR Range 3...

●2.0 Megapixel 1600*1200 Resolution
●Support Two Way Audio
●Support iPhone/iPad/Android Mobile

Indoor 2.0 MegaPixel IP Dome Camera IGV-IP14

Features:

• H.264 Main Profile @level 3
• 2.0 Megapixel 1600*1200 Resolution
• Dual H.264 Stream, resolution, frame rate, bit rate adjustable
• Support RTSP Compatible with VLC Media Player
• Onvif Compliant, Support Milestone/Axxon/NUUO/Geovision
• Support Two Way Audio
• Build in Motion Detection
• 3.6/6 mm Mega Pixel Fixed Lens included
• Φ5 42pcs IR LED IR Range 30 m
• Plastic Material Housing, Indoor Use
• Support Micro SD Card (SDHC up to 32GB) Optional
• Support iPhone/iPad/Android Mobile
• Support Intelligent Video Analytics Software

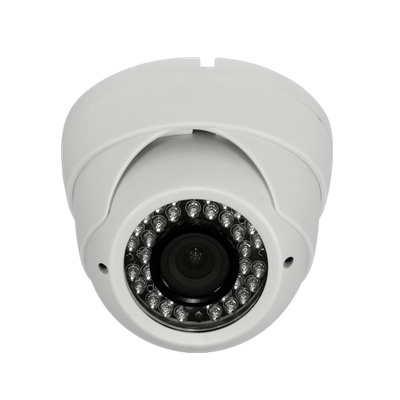

Indoor 2.0 MegaPixel IP Dome Camera IGV-IP14 Picture:

Indoor 2.0 MegaPixel IP Dome Camera IGV-IP14 Specification:

Model			IGV-IP14
Sensor			1/4" Progressive Scan CMOS
Effective Pixels			1600(H)×1200(V)
Min.Illumination			1250mv/lux-sec
Day/Night			Auto,dual IR-Cut filter
IR LED			Φ5 42pcs IR Leds,IR Range 30m
Max S/N Ratio			39dB
Optical lens		Interfaces	Board Mount M12.5 (Interchangeable Lens)
		Lens	Fixed Iris, Manual Focus
		Focal Length	Fixed Focal, f3.6 mm / F1.8(2.8/6 mm for optional)
		H View Angle	62.2°
Audio Talkback			1 channel power MIC input, External access, AV interface
Audio Output			1 channel power speaker output, AV interface
Storage Interface			Micro SD (TF) Card supports video storage and image snapping;
			*SD2.0 standard,maximum storage 32G*
RS485			Default as RS485 port for PTZ, 1ch Alarm input or 1ch alarm output optional
Video Compression			H.264 Main Profile; MJPEG/JPEG Baseline
Resolution	Main Stream		UXGA (16001200) 1-15fps, HD 720P (280720) 1-25fps
	Sub Stream		CIF(352288)/QVGA(320240)/QCIF(176*144) 1-30fps
Title OSD			Supports channel name, date, and video stream information overlay;
			OSD location is adjustable
Privacy Mask			4 configurable regions
Auto Image Control Functions			Auto Exposure Control (AEC); Auto White Blance (AWB); Auto Band Filter (ABF)
			Auto Black Level Calibration (ABLC)
Image Controls			Color saturation, hue, gamma, sharpness (edge enhancement), lens correction,
			defective pixel canceling, and noise canceling
Two Way Audio			Support
Recording			Recording set up to record by motion trigger,alarm trigger, manual, or schedule
Alarm Output			*FTP,E-mail, Explorer, Software*
Network protocol			TCP/IP\UDP\RTP\RTSP\RTCP\HTTP\DNS\DDNS\DHCP\FTP\NTP\PPPOE\SMTP\UPNP
Wireless protocols(-W)			802.11b/g/n, 150Mbps, Supports WEP,WPA,WPA2("-WiFi" model supports)
ONVIF protocols			*Support 1.02 version*
Remote View		PC	IE 6.0 or later, max 10 users
		Mobile Phone	*iPhone, Android, Blackberry Mobile*
Environmental Casing			Plastic material Housing, Indoor Use
Installation			Ceiling Mount Screws Included
Power			DC12V 2.0A
POE			No
Dimension			95 mm (H) * Φ120 mm (3.74" x 4.72" x 4.72")
Weight			0.5 KG
Package Dimension			234 mm (L) * 164 mm (W) * 153 mm (H)
