2.0 Mega pixel IP Cameras from China manufacturer - IGreenView Optoelectronic Co.,Ltd

Payment Terms:	T/T,WU
Special Groups:	New CCTV Product (136)
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: IGV-IP302

Production Capacity: 6,000pcs/month

Delivery Date: 7 days

Image Sensor: 1/4" Progressive Scan CMOS

Management: J-Suveillance ,Client,Inter...

POE: POE Class 3 IEEE802.3af, op...

Waterproof: IP66

Means of Transport: Ocean,Land,Air

Packing: OEM

Brand Name: IGreenView / OEM

Effective Pixels: 1600(H)×1200(V)

ONVIF Support: Milestone, Digifort, Axxon,...

IR Range: Φ5 42pcs IR Leds IR Range 3...

●2.0 Mega pixel IP IR Waterproof Cameras
●2pcs Array LED,IR Range 40 m
●Onvif Compliant, Support Milestone/Axxon/NUUO/Geovision

2.0 Mega pixel IP Cameras IGV-IP302 Main Feature:

• H.264 Main Profile @level 3
• 2.0 Megapixel 1600*1200 Resolution
• Dual H.264 Stream, resolution, frame rate, bit rate adjustable
• Support RTSP Compatible with VLC Media Player
• Onvif Compliant, Support Milestone/Axxon/NUUO/Geovision
• Support Two Way Audio
• Build in Motion Detection
• Fixed Focol f6 mm / F1.4
• 2pcs Array LED,IR Range 40 m
• Support Power over Ethernet (IEEE 802.3af) optional
• Support Micro TF Card (up to 32GB) Optional
• IP66 Rated Waterproof, Outdoor Use
• Support iPhone/iPad/Android Mobile
• Support Intelligent Video Analytics Software

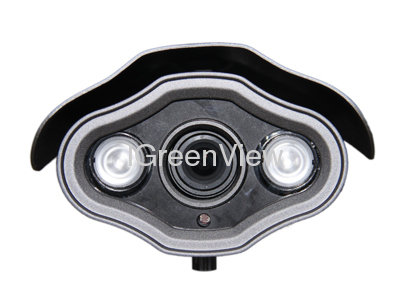

2.0 Mega pixel IR IP Cameras IGV-IP302 Picture:

2.0 Mega pixel IR IP Cameras IGV-IP302 Specification:

Sensor
1/4" Progressive Scan CMOS
Effective Pixels
1600(H)×1200(V)
Min.Illumination
1250mv/lux-sec
Day/Night
Auto,dual IR-Cut filter
IR LED
2pcs Array LED,IR Range 40 m
Optical lens
Interface
CS mount (Interchangeable Lens)
Lens
Fixed Iris, Manual Focus
Focal Length
Fixed Focol f6 mm / F1.4(4/8 mm for optional)
H View Angle
39.8°
Audio Talkback
1 channel power MIC input, External access, AV interface
Audio Output
1 channel power speaker output, AV interface
Storage Interface
Micro SD (TF) Card supports video storage and image snapping;
SD2.0 standard,maximum storage 32G
RS485
Default as RS485 port for PTZ, 1ch Alarm input or 1ch alarm output optional
Video Compression
H.264 Main Profile; MJPEG/JPEG Baseline
Resolution
Main Stream
UXGA (1600*1200) 1-15fps, HD 720P (280*720) 1-25fps
Sub Stream
CIF(352*288)/QVGA(320*240)/QCIF(176*144) 1-30fps
Video Bitrate
32Kbps~4Mbps,Supports CBR/VBR
Title OSD
Supports channel name, date, and video stream information overlay;
OSD location is adjustable
Privacy Mask
4 configurable regions
Auto Image Control Functions
Auto Exposure Control (AEC); Auto White Blance (AWB); Auto Band Filter (ABF)
Auto Black Level Calibration (ABLC)
Image Controls
Color saturation, hue, gamma, sharpness (edge enhancement), lens correction,
defective pixel canceling, and noise canceling
Two Way Audio
Support
Recording
Recording set up to record by motion trigger,alarm trigger, manual, or schedule
Alarm Output
FTP,E-mail, Explorer, Software
Network protocol
TCP/IP\UDP\RTP\RTSP\RTCP\HTTP\DNS\DDNS\DHCP\FTP\NTP\PPPOE\SMTP\UPNP
ONVIF protocols
Support 1.02 version
Remote View
PC
IE 6.0 or later, max 10 users
Mobile Phone
iPhone, Android, Blackberry Mobile
Environmental Casing
Waterproof (IP66 Rated), Outdoor Use
Installation
Brackets Included, Wall Mount
Power
DC12V 2.0A
POE
POE Class 3 IEEE802.3af, optional for "-POE" Model
Dimension
315mm(L) * 90mm(W) * 90mm(H)
Weight
1.2 KG (2.2 lb )
Package Dimension
320 * 160 * 120mm
Approvals
CE FCC RoHS
