Product Detail

Model No.: IGV-TS95

Production Capacity: 20000 pcs/month

Delivery Date: 3 days

display: 3.5" TFT LCD

video signal level test: support

audio test: input a group audio signal ...

Means of Transport: Ocean,Land,Air

Packing: oem

Brand Name: IGreenView / OEM

liquid crystal color adjustment: brightness/contrast/saturat...

DC12V1A output: DC121A output for carmera t...

communication port: Use general port of RS232/R...

Eleven-in-One CCTV security tester:Combine the video test,Optical Power Meter,Digital Multi-meter,PTZcontroller,video signal level test,UTP cable test

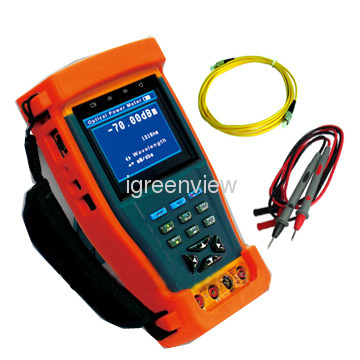

CCTV Security Tester(Optical power meter)

IGV-TS95

Eleven-in-One CCTV security tester

Combine the video test, Optical Power Meter, Digital Multi-meter, PTZ controller, video signal level test, NTSC/PAL color pattern generator, UTP cable test, PTZ protocol analysis, PTZ address scan, DC12 1A output, Audio test to one body.

The CCTV tester IGV-TS95 is developed for the On-Site installation and maintenance of video monitoring system. It can be used for displaying video, testing video level, controlling PTZ, scanning PTZ address, generating images, capturing data of RS485 and testing LAN cable etc.

It is easy operation, and portability makes it simple for the CCTV technician to install and maintain CCTV system, improving work efficiency and get the labor cost down.

IGV-TS95 equipped with the Optical Power Meter. Use in testing the laser power of Video Fiber Optic Transmission equipment, and testing the Fiber Optic Patch Cord , etc.
IGV-TS95 is an ideal multifunction Instrument for CCTV security system, Fiber Optical communication, CATV and other Fiber Optic works.

Application:
1.CCTV system installation and maintenance
2.Dome camera and All in one camera testing
3.The CCTV transmitting channel testing
4.PTZ controller

Features:

3.5"TFT-LCD , 960(H)×240(V)resolution

Optical power meter, testing the laser power of Video Fiber Optic Transmission equipment, and testing the Fiber Optic Patch Cord , etc.

Digital Multimeter, performs AD/DC Voltage, AC/DC Current, Resistor, Conductivity, Capacitor and Diode test.

DC12V power output

Audio input

Adjustable brightness, contrast, color of LCD

Video Level testing, video signals measured in IRE or mV

Automatically identify and adapt the video mode of NTSC and PAL

Colorbar Video signal generator, transmit/receive colorful images

Support more than twenty kinds of PTZ controller protocols. For example, PELCO-P, PELCO-D, SAMSUNG etc.

PPTZ address scanning, search up the ID of PTZ camera.

Capture the PTZ protocol to assist the setting personnel to find out the control protocol and therefore easily target the problematic equipment.

Support RS232 and RS485 interface, the rate 150-19200bps

Powerful in testing LAN cable, measuring the connecting status and displaying the sequence of connection

PTZ(P/L & Zoom) Control: Control the status of P/L, zoom in/out the camera, adjust the aperture, foci and setting parameters, run and call the preset.

Lithium Ion Polymer Batteries(3.7V DC3000mAh), more reliable, and work 15 hours

Easy for use that the train is almost unnecessary

Specification:

MODEL	IGV-TS95
Video Test
Signal mode	NTSC/PAL (Auto Adjust)
Display	3.5 inch TFT-LCD ,960 x 240 resolution
LCD adjust	Adjustable brightness, contrast, color of LCD
Video IN/OUT	1 channel BNC Input & 1 channel Output
Video Output Mode	1.0 Vp-p
Video Level test
Level test	Video signals measured in IRE or mV
Power Output
Power output	DC12V, 1A
Audio Test
Audio input	1 channel Audio input
PTZ controller
Communication	RS232, RS422 simplex and RS485
PTZ Protocol	Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.customized
Baud Rate	150,300,600,1200,2400,4800,9600,19200bps
Video Signal Generation
Color bar generation	Output 1 channel color bar video signal for testing monitor
UTP CABLE TEST
UTP cable test	Test UTP cable connection state and display in the screen. Read the number of the test box.
PTZ data Capture and display
PTZ Data Test	Capture and Analyze the PTZ data sent from controlling device
PTZ address scanning
PTZ address scan	Search up the ID of PTZ camera
Optical Power Meter
Wavelength	850, 1300, 1310, 1490, 1550, 1625nm
Detector	InGaAs
Linker	FC/PC(SC, ST)
Measurement Range	-70~+10dBm
Display Resolution	0.01dB
Digital Multimeter
Reading range	-6600~+6600
AC/DC Voltage	0-600V Auto/Manual ranging, 0.1mV resolution
AC/DC Current	6.6mA, 66mA, 660mA, 10A Manual ranging
Resistor	660, 6.6K, 66K, 660K, 6.6M, 66MΩ auto/manual range
Continuity	Built-in buzzer will sound, if resistance is lower than 50Ω
Diode	2.0V Range, 1mV resolution
Capacitor	6600pF~66,000μF auto/manual range
POWER
Power Adapter	DC5V, 2A
Battery	1 pcs Lithium Ion Polymer Batteries, 3.7V DC3000mAh
Rechargeable	4.5 hours recharging time, work for 12 hours
Low Consumption	Sleeping mode, display battery power state
Other Parameters
Work Temperature	-10℃---+50℃
Work Humidity	30%-90%
Dimension/Weight	11218947mm,500g
