Product Detail

Model No.: IGV-TS91

Production Capacity: 70000

Delivery Date: 3

display: 2.8

video signal level test: support

audio test: input a group audio signal ...

Means of Transport: Ocean,Land,Air

Packing: oem

Brand Name: IGreenView

liquid crystal color adjustment: brightness/contrast/saturat...

DC12V1A output: DC121A output for carmera t...

communication port: Use general port of RS232/R...

1Video Signal Test
2.Video Signal dynamics Test
3.PTZ control Test
4. DC5V2

Product Name:CCTV camera tester with DC121A

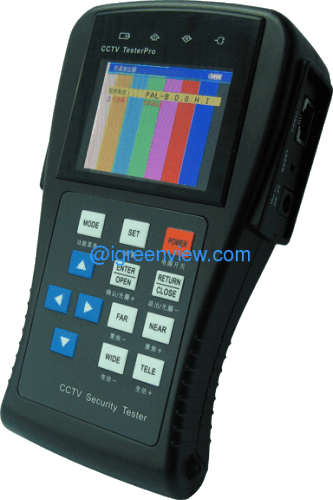

2.8" TFT-LCD CCTV Tester
LCD Brightness/Contrast/Color Saturation are adjustable, NTSC/PAL auto display,
Video Level testing, NTSC/PAL colorbar generator,PTZ controller,UTP cable tester, PTZ data analyst,
PTZ address scanning,with DC12V 1A power output for camera, Audio testing,Lithium Ion Polymer Battery support 15 hours working

display	2.8'inch TFT-LCD
liquid crystal color adjustment	brightness/contrast/saturation could be adjusted
back light adjustment	image can be seen clearly under highlight
video signal level test	support
keyboard pressed key	the keyboard is big/waterproofing/usability
communication port	Use general port of RS232/RS485/RS422 RS485 and dispose RS485 line for convenience and durable.
baudrate	150/300/600/1200/2400/4800/9600/19200bps
colorbar generator	Output or receive seven different forms of video color bar to tester monitor,cable or other equipment/the colored pattern strip sends out,simultaneously may receive the transmission of the coloring strip,the test is more direct-viewing easily
UTP cable test	test random two or more than two mesh wires,and demonstrates the connection order and the mesh wire serial number on the screen.May work as wiring project jack box.
PTZ controlling and capturing data of RS485	may capture and demonstrate the PTZ controller number of RS485/RS232 and judge if the RS485/RS232 data are frequency or correspond normally.
PTZ controlling protocol	more than 20 kinds of protocols(Pelco-P/Pelco-D/Panasonic/Lilin/SAMSUNG and so on)
battery capacity demonstration	the battery capacity could be displayed above the screen,is more direct-viewing
PTZ adress scanning	assist the engineer scanning the dome carmera quickly or controlling the PTZ communication address
PTZ continuing rotate test	PTZ continuing rotate test be used to test whether the "PTZ rotate"is normal.
DC12V1A output	DC121A output for carmera test.etc.supply temporary power source for camera
audio test	input a group audio signal to test whether the voice nomal
digital multimeter	no support
optical power meter	no support
shock gum case and wrist strap	no support
power supply way	high-end polymer lithium battery and external power supply,double power supply way.built-in 3.7V polymer lithium battery,capacity 2800mAh.the tester is stabler and is safe,duration of charging short(4 hours),the period of revolution is 15 hour.the polymer lithium battery is safer durably.
