Auto-tracking High Speed Dome Camera from China manufacturer

Payment Terms:	T/T,WU,
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: IGV-PTZ10-AT

Production Capacity: 5000pcs/month

Delivery Date: 7-15 days

Alarm function: 7 alarm input/2 alarm outpu...

Preset speed: 320°/S

Protection grade: IP66, TVS4000V lightning-pr...

Means of Transport: Ocean,Land,Air,

Packing: OEM

Brand Name: IGreenView / OEM

Auto-flip: Tilt down 90°, with auto-fl...

Rotation: Continuously 360°;tilt 0~90...

●Support Rs485, Manchester, BI-PHASE code, coaxial video control
●Temperature display function, can survey the temperature inside of dome.

Auto-tracking High Speed Dome camera IGV-PTZ10-AT

Features:

● Entire metal structure, fast installation and disassemble structure, support hot plugging.

● Pan 360° continuously, tilt 90° rotation, auto-flip, manual speed: 0.4°320°/s.

● Humanize focus and speed proportion.

● 128 presets (titles can be set); Tour is based on presets, speed & park time of presets can be set.

● 8 programmable zones, 4 patterns, and each record time is not less than 180s.

● 4 scan, support scanning between left limit and right limit at an appointed speed.(at this time the dome still support focus and tilt operation )

● Built-in OSD menu, can change information and parameter of dome through menu, also can set and call presets, tour, scan, pattern, camera mode and display name etc.

● Park action function, can auto-call presets or start-up tour, pattern and scan after dome idle for a period of time

● 7 alarm input, 2 alarm output, support linkage. (To call preset pattern, scan, tour, display areas etc)

● Real clock function, can set auto-call preset or start-up tour, pattern, scan in particular time by built-in OSD menu

● Memory store function, built-in memorizer which can store parameters of camera & functions of PTZ.

● Temperature display function, can survey the temperature inside of dome.

● Fan enable function, through pre-setting the temperature to start-up the fan.

● Display function of Pan/tilt position and zoom, provide a port for motion-tracking and data processing

● Privacy masking zone, you can set a masking frame to protect privacy when there is a private zone displaying on screen.

● Communication (support Rs485, Manchester, BI-PHASE code, coaxial video control).

● Built-in multi-protocols and fully compatible with PELCO-D\PELCO-P\KALATEL, AD\PHILIPS\VCL\MOLYNX\VICON etc.

● IP66 all-day protection cover, built-in constant temperature device.

● Built-in TVS4000V lightning-proof, surge-proof and wave-proof.

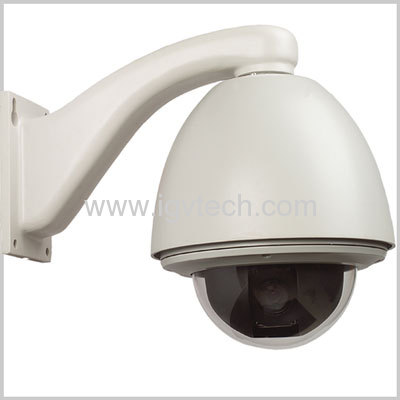

Auto-tracking High Speed Dome camera Picture:

Specification:

Manual speed	Pan(0.4°320°/S)
Manual speed	Tilt(0.4°150°/S)
Preset speed	320°/S
Rotation	Continuously 360°;tilt 090° with auto-flip
Speed proportion	As the length of focus, to auto-adjust the speed
Preset	128 preset, title can be edited
Auto-flip	Tilt down 90°, with auto-flip 180°
Scan	355°programmable ,4 scan
Display zone	8 programmable zones with titles
Alarm function	7 alarm input/2 alarm output
Sync model	Internal
Decoder	Built-in
Video output	Female BNC
Romote controlling	RS485/422 BUS\Manchester \BI-PHASE\Coaxial Video Control
Baud rate (RS485)	2400/4800/9600/19200 bps
ID range	1254
Temperature	Indoor -10℃+60℃;Outdoor -40℃+60℃
Humidity	095%(non-condensation)
Protection grade	IP66, TVS4000V lightning-proof, surge-proof, wave-proof, all-day defend cover
Power supply	AC 24V ±4V
Power consumption	Indoor 10W Outdoor 50W
Dimension (D x H)	Φ231×270(H)mm (Outdoor)
Dimension (D x H)	Φ245×252(H)mm (Insert)
Net weight	5.4kg (Outdoor) 1kg(Wall bracket)
Net weight	3.3kg (Insert)
