HD SDI High Speed Dome Cameras from China manufacturer

Payment Terms:	T/T,L/C,WU,
Special Groups:	New CCTV Product (136)
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: IGV-PTZ83

Production Capacity: 4000pcs/month

Delivery Date: 7 days

Image sensor: 1/2.8" Color Sony Exmor 2 M...

Preset: 128 preset, title can be ed...

Signal System: 1080P,1080i,720P

Means of Transport: Ocean,Land,Air,

Packing: OEM

Brand Name: IGreenView / OEM

Zoom Lens Specification: f= 4.7-84.6mm F1.6-F3.5

Scan: 355°programmable ,4 scans

●Sony "Exmor" Technology Support Min. Illumination
●18x Optical Zoom
●Built-in IR-Cut Removable (ICR) Model
●1080P Full HD Resolution Support

High Speed Dome Camera (2 megapiexl hd-sdi camera Optional)

IN-Ceiling mount 1080P HD High Speed Dome Camera IGV-PTZ83

Feature:
● Integrated structure,convenient and fast installation

●128 presets(titles can be set), 4 tours; 8 programmable zones(titles can be set); 4 pattern, each record time is more than 180 seconds;4 scan, support camera scanning repeatly between right limit and left limit at an appointed speed.

● All-in-one, highly compact camera ideal for demanding applications such as video surveillance, public transportation, sports, videoconferencing and more

● Park action function, can auto-call presets or start-up tour, pattern, scan and display areas after dome is idle for a period of time.

● Screen will display pan/ tilt position, zoom etc.

● Built-in lightning-proof, Surge-proof and wave-proof.
● 2 megapixel hd-sdi PTZ camera optional

High Speed Dome Camera Module Features:

● 1/2.8" 2.1 Megapixel Progressive Scan CMOS
● Sony "Exmor" Technology Support Min. Illumination
● 1080P Full HD Resolution Support
● Real Time Video up to 30FPS
● 18x Optical Zoom
● Built-in IR-Cut Removable (ICR) Model
● Built OSD
● Mirco Coaxial Cable through LVDS Output
● Parameter Control through URAT Interface
● Support SONY VISCA Protocol

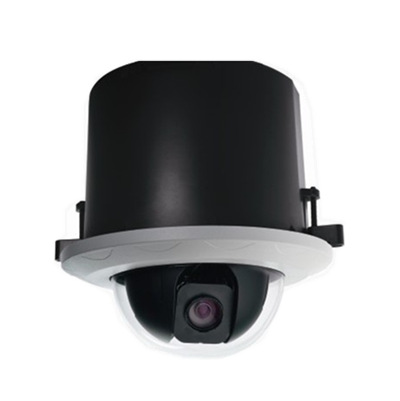

1080P HD High Speed Dome Camera IGV-PTZ83 ( IN-Ceiling mount) Picture:

High Speed Dome Camera ModuleSpecification:

VIDEO
Image Device
1/2.8" Color Sony Exmor CMOS
Picture Elements
Approx. 2.1M (1920 × 1080)
Resolution (Frame Rates)
720_50i / 720_60i;720_25p / 720_30p
1080_50i / 1080_60i;1080_25p / 1080_30p
Illumination
0.1 Lux @F1.2 Color Mode
S/N Ratio
More than 48dB
Electronic Shutter
Auto: 1/50~1/100,000
Manual: 1/50(60), 1/100(120), 1/250, 1/500, 1/1000,
1/3000, 1/5000, 1/100,000
Gamma
0.45
LENS
Lens Drive Type
Mototized 18X Zoom
Focal Length
f=4.7 mm (wide) to 84.6 mm (tele)
Angle of View
54.1°(wide end) to 3.2° (tele end)
Aperture Range
F1.6 to F3.5
Aspect Ratio
16:09
Iris Control
Auto / Manual
Mini. Shutting Distance
0.01m (Wide), 1.5m (Tele)
DAY / NIGHT
IR-Cut filter Removable
Yes
Day & Night
Auto / Day / Night / External
FUNCTIONS
On-Screen-Display (OSD)
N/A
Language
N/A
Focus Mode
Auto / Manual / Push Auto / Infinity
Zoom Speed
High / Middle / Low
Digital Zoom
N/A
Wide Dynamic Range (WDR)
Normal / ATR-EX
Digital Noise Reduction (DNR)
On / Off
Digital Slow Shutter (DSS)
On / Off
White Balance
Auto / Indoor / Outdoor / Manual / Push Auto
Gain Control
Auto
Back Light Comp.
On / Off
Flickerless Mode
On / Off

Remark:

Serial Digital Interface (SDI) is a standard for digital video transmission over coaxial cable - the same cable used for Analog security systems. This makes it easy to convert from Analog to SDI because you don't have to re-cable and you don't need networking knowledge to set up the system. HD-SDI has an advantage over Analog systems in that it supports high resolution cameras.

HD-SDI Cameras can be part of a hybrid Analog-SDI system. Analog cameras are used for locations where VGA resolution is adequate. HD-SDI Camerasare placed in important areas where you may need to zoom in to see faces, license plate numbers, or other detail. This makes for a cost-efficient surveillance system.
