SDI Dome Security Camera from China manufacturer - IGreenView Optoelectronic Co.,Ltd

Payment Terms:	T/T,WU,
Special Groups:	Hot selling Security cameras (163)
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: IGV-VD22SDI

Production Capacity: 9000pcs/month

Delivery Date: 7 days

Image Device: 1/3" Sony CMOS Progressive ...

Lens: 2.8-12mm,ICR+DC lens

Means of Transport: Ocean,Land,Air,

Packing: OEM

Brand Name: IGreenView / OEM

Total Pixel No.: 720P/1080P

IR LED: 36pcs*￠5mm,IR Range:30M

● HD-SDI Dome Security Camera,CMOS Megapixel sensor
● Support WDR,3D-DNR
● convenient for test and installation
● IR Led:36pcs,30M

HD-SDI Indoor Dome Security Camera (IGV-VD22SDI) Feature :

● HD-SDI Dome Security Camera,CMOS Megapixel sensor
● Support WDR,3D-DNR
● DAY and NIGHT ICR function
● OSD menu,Motion detection
● Digital Zoom function
● SDI and VIDEO dual signal output
● convenient for test and installation
● IR Led :36pcs*5mm,IR Range:30M
● Match 2.0 Mega pixel 2.8-12mm,ICR+DC lens

HD-SDI Indoor Dome Security Camera (IGV-VD22SDI) Picture:

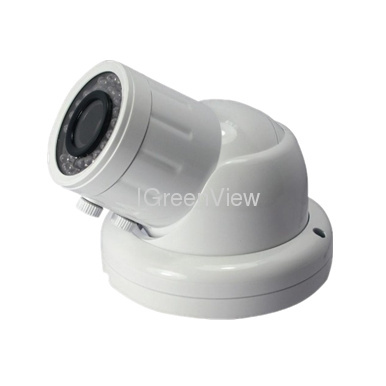

HD-SDI Dome Security Camera with 2.8-12mm lens

HD-SDI Dome Security Camera with 2.8-12mm lens

HD-SDI Indoor Dome Security Camera (IGV-VD22SDI) Specification:

Image Device	Image Device	*1/3" Sony CMOS Progressive Scan*
	Scan Type	Progressive Scan
	Total Pixel No.	1280 (H) x 720 (V)
Lens	Mount	Φ14
	Lens Control	2.8-12mm DC&ICR lens
	Resolution	2.0 mega pixel
Functions	AGC	Normal/ High/ Off
	Shutter	AUTO, 1/50~1/3,000
	Sens-Up	Off, ON (x2~x128)
	Min Illuminance	0.1 Lux (Color)/ 0.02 Lux (B/W) @ 50IRE
	AWB	Auto/ AUTO_R/ AUTO_G/ AUTO_B/ Wide/ PUSH SAVE
	BLC	Off/ low/ middle/ high/ Ultra (Area adjustable)
	WDR	Off/ low/ middle/ high/ Auto
	3D DNR	Off/ On/ Auto (3D DNR automatic On/ Off by motion)
	Flickerless	50Hz/ 60Hz selectable
	Privacy zone	8 area (Each zone size can be changeable)
	D. Zoom	x1~x10
	True Day & Night	Color/ B&W/ Auto/ Ext (ICR type)
	Others	Motion detection, Image Flip & Mirror
Video Output	Standard HD-SDI	SMPTE 292M compatible
	Analog CVBS	Composite video output, 75Ohm, 1Vp-p
	Output Resolution	720P 50/60fps (1280x 720)
Serial	RS232C	For F/W, OSD downloading
User I/F	OSD Menu	Function setting
Electricity	Power Consumption	DC +12V/ Max. 300mA (with CVBS output)
Environment	Operating Temperature	0 °C~55 °C
Environment	Humidity	0%RH~80%RH

Remark:

HD-SDI CCTV cameras, also known as HD security cameras, are capable of capturing video surveillance footage at 1080p resolution (1920 x 1080 pixels). These high definition surveillance cameras must be used with an HD-SDI surveillance DVR. If you would like to use a combination of HD and SD cameras,IGreenView offers hybrid DVRs that can accommodate both types of cameras on a single system.
