Model No.: IGV-PD125EPR

Production Capacity: 9000pcs/month

Delivery Date: 7 days

CCD Pixel: Sony 662/663 + Sony Effio-P

Lens: 4-9mm/2.8-12mm option

Means of Transport: Ocean,Land,Air

Packing: OEM

Brand Name: IGreenView / OEM

Resolution: 750TVL / 700TVL

WDR: Real WDR function (Wide Dyn...

●Sony 662/663 + Sony Effio-P;
●Super WDR, 3D-DNR, OSD, low Lux;
●OSD Menu, 4-9mm Vari-focal Lens;

Sony Effio-P WDR Dome Cameras IGV-PD125EPR Feature :

● 1/3" SONY Super HAD II(Double Scan) CCD and Sony Effio-P DSP

● Real WDR function (Wide Dynamic Range 128 db);

● ATR-EX (Adaptive Tone Reproduction) , 2D & 3D Noise Reduction;

● Digital Image Stabilizer, Motion Detection, Privacy Mask;

● HLC (High Light Compensation), Slow Shutter(Sens-up);

● OSD Menu, 4-9mm Vari-focal Lens;

● Plastic Case ,3 Axis bracket

Sony Effio-P WDR Dome Cameras IGV-PD125EPR Picture:

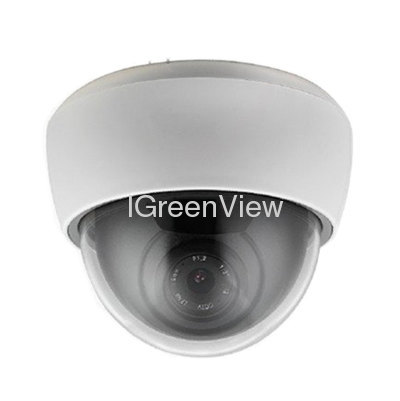

Sony Effio-P 700TVL WDR Dome Cameras with 4-9mm vari-focal lens

Sony Effio-P WDR Dome Cameras IGV-PD125EPR Specification:

Model	IGV-PD125 EPR
Imaging Sensor	1/3" SONY Super HAD II(Double Scan) CCD
Scanning System	2:1 Interlace
Scanning Frequency	NTSC: 15.734KHz(H), 59.94Hz(V)	PAL: 15.625KHz(H), 50Hz(V)
Total number of pixels	NTSC: 1108(H)x508(V)	PAL: 1108(H)x596(V)
S/N Ratio	More than 50dB(AGC off)
Video Output	1.0Vp-p(75ohm, composite)
Resolution	Max 700TV Lines in color @ HR 7 mode
	(750TV Lines in B/W @HR 7 mode)
Min. Illumination	Color:0.3Lux, BW:0.1lux
	Color DSS:0.0005lux, BW DSS:0.0002lux, IR ON :0.00lux
Exposure	Auto/Shutter PRI/Manual
White Balnace	ATW/One Push/ Manual / Indoor/ Outdoor/Auto
BLC	On / Off
AGC	Off/On(Max 30dB)
Shutter Speed	NTSC: 1/60~1/100, 000sec	PAL: 1/50~1/100, 000sec
Flickerless	On/Off
Brightness	1~15 steps
DNR	On/Off/Manual
WDR	On/Off
HLC	On/Off
BLC	On/Off
E.Zoom	E-Zoom(Max x2~x32)/E-Pan/E-Tilt
Day&Night	Day/Night/Auto/Ext
Pivacy Mask	Off/16 positions
Chroma	Low/Mid/High
Motion Detection	On / Off (3 Zone Selectable)
Effect	Off/Negative/B/W
Communication	Baud Rate:2400/4800/9600/19200/38400/57600/115200
	Protocol:VISCA/ Pelco - D & Pelco - P & VISCA
Sharpness	1~16 steps
OSD	Built-in
Lens	4-9mm / 2.8-12mm lens
Operating Temperature	(-10°C ~ + 50°C)
Supplied Voltage	DC12 ± 10%
Dimension	134mmx134mmx97mm
Weight	300g
Options	DC12V

Remarks:

There are a few advantages the Effio-P has over the Effio-E. The biggest advantage is the addition of WDR (Wide Dynamic Range). Addionalt this camera offers 2D+3D-NR. Other sellers claim to have "Effio-E + WDR." This is impossible because only the Effio-P has WDR. Others sellers claim to have "D-WDR or DWDR." This is "Digital WDR" and is not the same a true WDR. The best way to tell the difference between Effio-E and Effio-P is looking for 3DNR + ATR-EX + SENSE-UP. All of these features are only available in the Effio-P.
