Product Detail

Model No.: IGV-VD17

Production Capacity: 20000

Delivery Date: 7

Pick-up device: 1/3''SONY Super HAD ⅡCCD

Lens: 3.6 / 6 / 8 mm

IR Distance: 20-25 M

Means of Transport: Ocean,Land,Air

Packing: OEM

Brand Name: IGreenView / OEM

Horizontal Resolution: 700TVL/600TVL/480TVL/420TVL

IR LED: 23-36 Pcs

Color: white

●2.5"IR Vandalproof Dome Camera
●SONY673/672+Effio-E,700TVL;
●Sony / Sharp CCD 420-700TVL is optional
●IR Led:￠5X23pcs, IR Range: 20m

2.5 inch Metal Dome Camera (IGV-VD17) Main Features:

●2.5"IR Vandalproof Dome Camera
●SONY673/672+Effio-E,700TVL;
●Sony / Sharp CCD 420-700TVL is optional
●IR Led:￠5X23pcs, IR Range: 20m
●Standard match 3.6mm fixed lens
●Cable OSD is optional

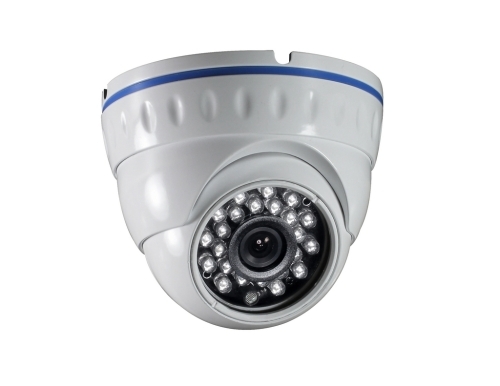

2.5 inch Metal Dome Camera (IGV-VD17) picture:

Specification:

Model	IGV-VD17SR	IGV-VD17LR	IGV-VD17EXR	IGV-VD17EFR
Image Sensor	1/4" COLOR SHARP CCD	1/3" COLOR SONY Super HAD CCD	1/3" COLOR SONY Super HAD ⅡCCD	1/3" COLOR SONY Super HAD ⅡCCD
Image Resolution	PAL:500(H)×582(V)	PAL:500(H)×582(V)	PAL:752(H)×582(V)	PAL:976(H)×582(V)
Image Resolution	NTSC:510(H)×492(V)	NTSC:510(H)×492(V)	NTSC:768(H)×494(V)	NTSC:976(H)×494(V)
Horizontal Resolution	420TVL	420TVL	600TVL	700TVL
Digital to Analog	12Bit	9Bit	10Bit	12Bit
Minimum illuminator	0.5LUX/F1.2	0.1LUX/F1.2	0.01LUX/F1.2	0.01LUX/F1.2
S/N Ratio	>48dB		>50dB
AES	1/50-1/60,000sec(PAL),1/60-1/60,000sec(NTSC)
WDR	—	—	D-WDR	D-WDR
DNR	—	—	3D-DNR	2D-DNR
OSD	—	—	OSD	OSD
White Balance	ATW
AGC	AUTO
BLC	ON
Gamma Adjusting	0.45
synchronization System	Internal Synchronization
Operating Enviroment	-20℃~60℃ / 10% ~ 95%RH
Voltage	DC12V (9V ~ 15V)
