CCTV Camera UTP Video Balun With Audio from China manufacturer

Payment Terms:	T/T,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: IGV-UTP01B/C

Production Capacity: 80,000pcs/month

Delivery Date: 3-5 days

keyword: Video Balun

Compatible: PAL, NTSC, SECOM

Means of Transport: Ocean,Land,Air

Packing: OEM

Brand Name: IGreenView / OEM

UTP Port: RJ45

Dimensions: 41*21*2.2(mm)

● 1 Channel UTP Video Balun With audio
● transmission and receiver (audio)
● connect CAT-5 cable to transmit power, audio and video

1 Channel Passive CCTV Camera UTP Video Balun With Audio Features:

● CCTV video balun
● 1 Channel UTP Video Balun
● With audio
● 12V DC
● transmission and receiver (audio)

● connect CAT-5 cable to transmit power, audio and video

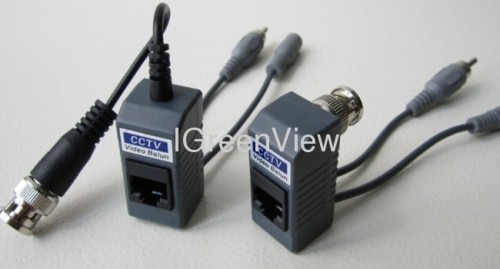

1 Channel Passive CCTV Camera UTP Video Balun With Audio Picture:

1 Channel Passive CCTV Camera UTP Video Balun With Audio Specifications:

Model	IGV-UTP01B & IGV-UTP01C
Spec	1CH Passiv Power/Video /DATE PVD Video Transceiver
Video	Frequency respons: DC-6Mhz Common-mode/Differential-mode Rejection: 15khz –6Mhz 60dB typ 60dB typ
Audio/data	YES
Power	NO
Impedance	Coax,male BNC:75ΩUTP(Screwless)Terminal Block or UTP RJ45 Data Connector:100Ω
Wire type	One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)
Surge suppression
Control	NO
UTP Port	RJ45
Dimensions(mm)	43202.1
Weigth(g)	35
Environment	Temperature:-10~+50°C Humidity:0~95%

Product Combinations:

Passive to Active Product Combinations (0-300M)
Transmit/Camera End	Power Supply	Receive/Monitor End	Power Supply
MVT-P1	No required	MVT-P1	No required
MVT-01		MVT-01
MVT-V-PT		MVT-V-PR
		MVT-S-P4/16
Passive to Active Product Combinations (0-800M)
Transmit/Camera End	Power Supply	Receive/Monitor End	Power Supply
MVT-P1	No required	MVT-V-AR	12VDC &24VAC
MVT-01		MVT-02R	12VDC &24VAC
MVT-V-PT		MVT-V-A8/16	110VAC or220VAC
		MVT-008R/016R	110VAC or220VAC
Active to Active Product Combinations (0-1500m)
Transmit/Camera End	Power Supply	Receive/Monitor End	Power Supply
MVT-V-AT	12VDC &24VAC	MVT-V-AR	12VDC &24VAC
MVT-02T	12VDC &24VAC	MVT-02R	12VDC &24VAC
MVT-S-AT	12VDC	MVT-V-A8/16	110VAC or220VAC
		MVT-008R/016R	110VAC or220VAC
