1 Channel Passive UTP Video Balun Transceiver

Payment Terms:	T/T,WU
Special Groups:	Hot selling Security cameras (163)
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: IGV-UTP01A

Production Capacity: 12000pcs/month

Delivery Date: 3-5 days

Transmission distance: 300 m

Impedance: Coax (BNC female) 75 Ohm; U...

Means of Transport: Ocean,Land,Air

Packing: OEM

Brand Name: IGreenView / OEM

Signal Type: Video(PAL, NTSC, SECAM and ...

Connector: Coaxial BNC(male),twisted-p...

•Transmission distance up to 300m working with passive transceivers, up to 1200m woring with HXVB-120R active receivers.
•No power needed.

IGV-UTP01A is a high-definition AV signal passive UTP video balun transmitter which mainly used for security, education and other fields. It uses Cat5 or Cat5e as a transmission medium. It can real-time transmit 300 meters color or 600 meters black and white baseband video signal. its transmission distance will up to 1200m color signal or 1800m black and white signal if working with active receivers. it will save wiring costs, simplify your wiring works.

1 Channel Passive UTP Video Balun Transceiver (IGV-UTP01A) Feature:

Compatible with all qualified UTP cameras
ABS plastic shell fire, copper BNC connector, environmental terminal
Real-time transmission of High-Definition video signals.
Transmission distance up to 300m working with passive transceivers, up to 1200m woring with HXVB-120R active receivers.
No power needed.
NTSC, PAL, SECAM video formats
Compact size and easy installation

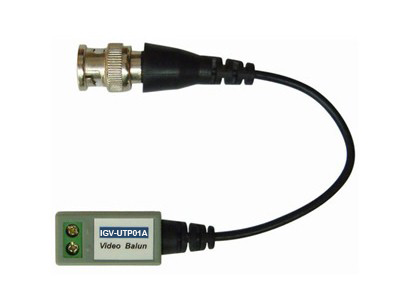

1 Channel Passive UTP Video Balun Transceiver (IGV-UTP01A) Picture:

1 Channel Passive UTP Video Balun Transceiver (IGV-UTP01A) Specification:

Transmission distance	0-300m
Signal Type	Video(PAL, NTSC, SECAM and other baseband video signal)
Connector	Coaxial BNC(male),twisted-pair terminal
Frequency response	DC to 6MHz
CMRR	0 to 6MHz 60dB (typical)
Impedance	Coax (BNC female) 75 Ohm; UTP (unshielded twisted pair) 100 ohms
Cable Type	Cat5 or Cat5e unshielded twisted pair
Cable Impedance	100 ± 20 ohms
Distributed capacitance	less than 62pF/m
DC loop resistance	18 Ohm/100m
Operating temperature	-20^oC~70^oC
Relative Humidity	0~95%(non-condensing)
Storage temperature	-40^oC~150^oC
Dimension	47mm x 15mm x 16mm
Weight	20g
