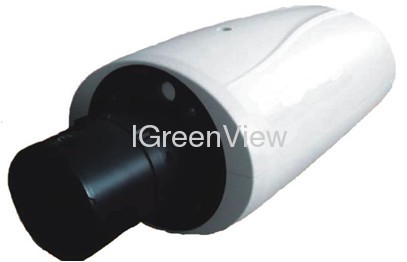

HD-SDI Box cameras

Payment Terms: T/T,WU
Place of Origin: Guangdong, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: IGV-SDI780
Production Capacity: 5000
Delivery Date: 7
Camera type: SONY 2.0 Megapixel CMOS
Lens: CS/C interface
Means of Transport: Ocean,Land,Air
Packing: White Box
Brand Name: IGreenView
Definition: 1080P
Video output: HD-SDI(BNC)

1. HD-SDI 30FPS@1080P HD-SDI Box cameras
2. 1/2.8 inch 2.0 Megapixel Sony sensor
3. Transmission distance more than 150M
4. Support CS/C Interface;

HD-SDI Box cameras


Main Features :
1. HD-SDI 30FPS@1080P Box camera
2. 1/2.8 inch 2.0 Megapixel Sony sensor
3. Transmission distance more than 150M
4. Support CS / C Interface; AWB,AGC,BLC
Sensor
SONY 2.0 Megapixel CMOS
Digital signal processor
Sony high-quality digital signal processor
1/2.8 CMOS sensor interlaced CY,Ye,Mg,G, complementary mosaic filter
Image system
NTSC / PAL
Signal System
HD SDI-1010P/30
Picture element
3.1M
Synchronous mode
INT
Power
DC12V/350MA
Maximum4.2W
Technical Specification
Exposure Control
AUTO
AES
1/60(1/50)-1/100000sec
Automatic Iris control
DC output
AGC
0-36dB
White balance
AUTO
AWB range
3200-9500K
BLC
AUTO
Digital Noise Reduction
2D
Video parameters
Definition
1080P
Minimum brightness
0.1LUX   F1.4
Signal Noise Ratio
>48dB
Video output
HD-SDI(BNC)
L/W/H
126X67X60mm
Weight
350g
Lens
CS/C interface
Operating Temperature
Indoor/Outdoor: -10℃~+50℃
