15 Channel CCTV power supply box IGV-BP15CH Feature:
● 12V 12A 15 channels CCTV power supply
● Power ON/OFF switch; Spare fuses included
● Stable performance, high efficiency
● Unit maintains camera synchronization
● Easy installation saves time and eliminates costly labor

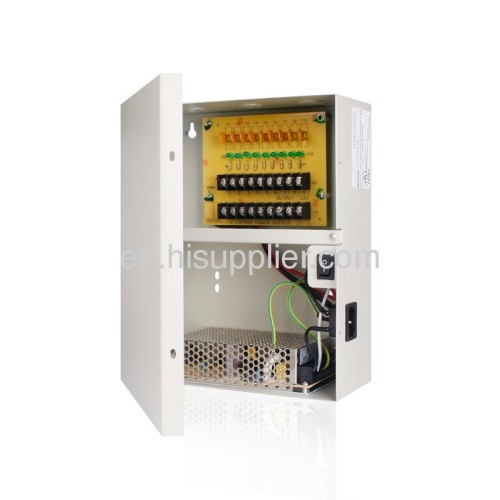

15 Channel CCTV power supply box IGV-BP15CH Picture:

Specifications:
1. Input Voltage: AC110-240V/47-63HZ
2. Output Voltage: 12Vdc
3. Total Output Current: 12A (800mA/output, 15 channels)
4. Total Output Power: 144W
5. Over Current Protection: 13A±5%
6. Fuse Type: Glass Fuse
7. Cooling: Natural cooling
8. Ripple& Noises: <150mV
9. Efficiency: 80% Min.
10. MTBF: >50000H
11. Operating Temperature -25°C ~ +60°C,20% ~ 90%RH
12. Storage Temperature: -40°C ~ +70°C,10% ~ 95%RH

Protection:
1. General Protection: each output has individual fuse, when problem occurs, only affect the individual output, other outputs still working;
2. Circuit Short Protection: when short condition occurs, individual fuse will open the circuit, when condition removed, replacing another new fuse will back to close;
3. High Voltage Protection: when high voltage occurs, the surge protection will be hit through to protect the connected device;
4. Over Current Protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.

Application:
● Digital and electronic products
● LED, CCTV supervisory system
● CCTV monitoring camera

A CCTV power supply box, also known as a power distribution box, allows surveillance system installers to easily manage the power to multiple CCTV cameras at a central point (usually at the location of the DVR). This allows your camera installation to be neater.
