Flying Saucer IR Cameras from China manufacturer - IGreenView Optoelectronic Co.,Ltd

Payment Terms:	T/T,WU
Place of Origin:	Guangdong, China (Mainland)

Product Detail

Model No.: IGV-MINI61

Production Capacity: 22,000pcs/month

Delivery Date: 7 days

Image Sensor: SONY/SHARP CCD optional ;

IR LED: 12pcs￠5mm IR LED,IR Distanc...

Other: Ceiling installation, suita...

Means of Transport: Ocean,Land,Air

Packing: OEM

Brand Name: IGreenView / OEM

Resolution: 420TVL-700TVL Optional;

Lens: 3.6 option

● UFO TYPE Camera 420TVL--700TVL Optional;
● Suitable to install in the Lift and the corridor, etc
● BLC/AWB function

IR Flying Saucer Camera IGV-MINI61 Features:

● UFO TYPE Camera

● SONY CCD 420TVL- 700TVL Optional

● 12pcs￠5mm IR LED,IR Distance:10m

● 3.6mm fixed Lens

● Ceiling installation, suitable for using in Elevator, Corridor and car;

● OSD controller on cable optional

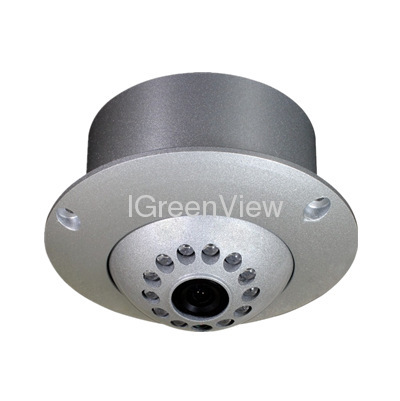

IR Flying Saucer Camera IGV-MINI61 Picture:
Waterproof IR Day Night CCTV Security IR Flying Saucer Camera With Sony / Sharp CCD

IR Flying Saucer Camera IGV-MINI61 Specification:

Module	IGV-MINI61SLR	IGV-MINI61SNR		IGV-MINI61DAP	IGV-MINI61HR	IGV-MINI61EXR	IGV-MINI61EFP
Image Sensor	1/4" Color SHARP CCD	1/3" Color SONY Super HAD CCD		1/3" Color i-View Tech Sensor	1/3" Color SONY Super HADⅡ CCD		1/3" Color SONY Super HADⅡ CCD
Signal System	PAL/NTSC
Effective Pixels	PAL:500(H)×582(V)			PAL:752(H)×582(V)			PAL:976(H)×582(V)
	NTSC:510(H)×492(V)			NTSC:768(H)×494(V)			NTSC:976(H)×494(V)
Resolution	420TVL			600TVL			700TVL
DAC	12Bit		9Bit	10Bit			12Bit
Minimum Illumination	0.5LUX/F1.2		0.1LUX/F1.2	0.1LUX/F1.2
S/N Ratio (Y signal)	Over 48dB			Over 58dB
Electronic Shutter Speed	1/50-1/60, 000sec.(PAL), 1/60-1/60, 000sec.(NTSC)
WDR	-		-	-	D-WDR	D-WDR	D-WDR
DNR	-		-	-	2D-DNR	3D-DNR	2D-DNR
OSD	-		-		OSD	OSD	OSD
White Balance	Auto White Balance			Auto White Balance/Manual White Balance/Auto Tracking White Balance
Gain Control	AUTO			Auto/Manual/Off
Backlight Compensation	ON			ON/OFF
Gamma Correction	0.45
Synchronization	Internal
Video Output	1.0Vp-p, 75Ω
Power Source	DC12V (9V ~ 15V)
Operating Temp.	-20℃~60℃ / 10% ~ 95%RH
