HD SDI Hybrid DVRs from China manufacturer - IGreenView Optoelectronic Co.,Ltd

Payment Terms:	T/T,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: IGV-SDVR110

Production Capacity: 8,000pcs/month

Delivery Date: 7-10 days

Type: Hybrid DVRs (HD-SDI + D1)

Audio Input: 8 x RCA + 2 x HD-SDI

Backup Device: iWatch DVR / USB Flash Driv...

Means of Transport: Ocean,Land,Air

Packing: OEM

Brand Name: IGreenView / OEM

Video Input: 2ch HD-SDI 1080P input+8ch ...

HDD: Max. 3 x SATA Devices(HDDx2...

Mobile Device: Windows Phone, Blackberry, ...

●2CH HD-SDI+8CH D1
●Support Windows Phone, Blackberry, iPhone, iPad, Android
●Playback resolution: 2ch 1080P+8ch D1
●Support 7 internal HDD

HD SDI Hybrid DVR IGV-SDVR110 Features:

● 2 channelHD-SDI 1080P input 8ch D1 input

● H.264 compression

● SDI frame Max. 60FPS recording with 1080P

● 1U chassis Support 3 internal HDD

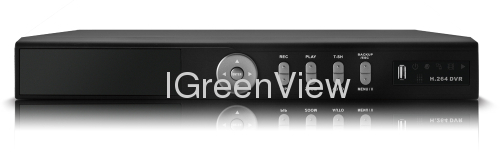

HD SDI Hybrid DVR IGV-SDVR110 Picture:

HD SDI Hybrid DVR IGV-SDVR110 Specification:

Video	Output		Max. 1920x1080 2 independent output: 1 HDMI with Audio, 1 VGA 1BNC bindable to either HDMI or VGA
	Input		HD-SDI camera (1080p / 720p) x 2 + (720x480 / 720x576) analog camera x 8
Audio	Output		2 RCA
	Input		8 x RCA + 2 x HD-SDI
System	Operating System		Embedded Linux OS
	SATA Devices		Max. 3 x SATA Devices *(HDDx2+eSATAx1, HDDx1+DVD±RWx1+eSATAx1)*
	External HDD		Yes( e-SATA )
	Sensor In (NO, NC) Relay out		Sensor-in x 10 Relay-out x 2
	Serial Interface		RS-485 (Inx1, Outx1)
	USB		2 x USB2.0
	Dimension ( mm )		430(w)x55(h)x293(d)
	Weight ( w/o HDD/DVD±RW )		2 Kg
	Power Input		Input 100~240V, Output 12V 5A
	Power		60W
Display	Speed		1080p/720p 60fps, D1 240 fps (NTSC) / 200 fps (PAL)
	Split screen		1,4,10, SEQ.
	Auto Channel Switching		Switching time : 1 ~ 99 sec
	Mode		Zoom ( Digital x2~ x8 ), PIP, Auto SEQ.
Recording	Compression		H.264 High Profile
	Dual Stream Resolution (Pixel)	Main (Recording)	1080p / 720p for CH 1 ~ 2 704x480, 704x240, 352X240 (NTSC) / 704x576, 704x288, 352x288 (PAL) for CH 3 ~ 8
		Sub (Network)	640x360 / 320x180 352x240, 176x240, 176x120 (NTSC) / 352x288, 176x288, 176x144 (PAL)
	Picture quality		10~100 levels for adjustment
	Mode		Normal, Manual, Event, Schedule
	Speed	NTSC	1080p real-time(for CH 1, 2) & D1 real-time(for CH 3 ~ CH 10)
		PAL	1080p real-time(for CH 1, 2) & D1 real-time(for CH 3 ~ CH 10)
	Pre-Alarm		1 ~ 10 SEC
	Post-Alarm		1 ~ 100 SEC
Playback	Display		1, 4, 10
	Search mode		Date/time, Event
	Zoom		Digital ( x2 ~ x8 )
	Snapshot		Yes
	Speed		Play, Pause, Stop, Slow(1/2, 1/4, 1/8), FF(4, 8, 16, 32), REW(4, 8, 16, 32), Frame Step, Seek Bar
	Device		Int. HDD
Network	Network Interface		10/100/1000 Ethernet
	Protocol		TCP/IP, SMTP, HTTP, DHCP, PPPoE(ADSL), NTP, DDNS
	Application		Windows XP/VISTA/7, Mac OS X
	Remote Software		iWatch DVR, IE Browser
	Account		1 Admin + 8 Users
	CMS		CMS for Windows XP, Windows Vista, Windows 7
	Mobile Device		Windows Phone, Blackberry, iPhone, iPad, Android
	Event Transport		e-mail
Backup	Interface		USB 2.0 or SATA
	Audio Backup		Yes
	Network		Yes
	Backup Device (Optional)		iWatch DVR / USB Flash Drive / USB DVD±RW / SATA DVD±RW
Alarm	Motion Detection		Sensitivity : 100 levels for each channel
			Area : Configurable detection area
	Event Log		Up to the 10000 events (Sensor, Motion, video Loss, power on, remote login, logout, HDD error, HDD full)
OSD & DVR Control	GUI		16-bit True Color
	Multi-Language		Supported
	Camera Title		Multi-Language
	USB Mouse		Yes
	Touch Panel		Touch Panel LCD Monitor (USB Interface, EETI Chipset Only)
	Remote Controller		IR Remote Control
	System Upgrade		USB, iWatch DVR
	Pan/Tilt/Zoom Control		Control From RS-485 Interface ( Pelco P, Pelco D, Samsung, LG, LiLin )
