4ch H.264 mobile DVRs from China manufacturer - IGreenView Optoelectronic Co.,Ltd

Payment Terms:	T/T,WU,
Place of Origin:	Guangdong, China (Mainland)

Product Detail

Model No.: IGV-MB4104-3G

Production Capacity: 8,000pcs/month

Delivery Date: 7-10 days

GPS: Built-in GPS module(Google ...

Size: 150mm x 125mm x 65mm

Video format: 1D1(25fps) + 3CIF(25fps)

Means of Transport: Ocean,Land,Air,

Packing: OEM

Brand Name: IGreenView

Transmission: 3G(EVDO/WCDMA)

Data Storage: 2TB SATA HDD,suport 64GB SD...

alarm: Alarm input: 4 alarm input,...

● Built-in GPS module.
● 3G transmission function (WCDMA/EVDO)
● 4 Channel video and audio recording (1 / 2 CH optional)

4 channels H.264 mobile DVR IGV-MB41043G

Main Features:

● Built-in GPS module.

● 3G transmission function (WCDMA/EVDO)

● 4 Channel video and audio recording (1 / 2 CH optional)

● Advanced H.264 high profile technology for video compression at lower bitrate.

● Video format: 1 D1 (25fps) + 3 CIF(25fps)

● 4 alarm input, 1 alarm output

● Motion detection / timer switch / alarm recording

● Dual shockproof

● Strong multiple medium supported Car black box

● Data Storage: Max support 2TB SATA HDD, support 64GB SD Card

● Compact size & lightweight, much easier for installation

● Body Weight: 1.1 KG.

● Product Size: 140 mm x 120mm x 52mm

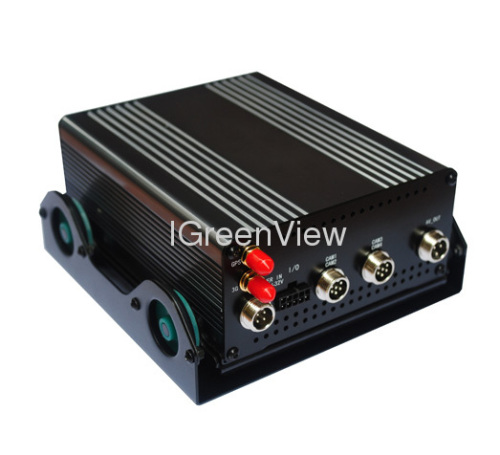

4 channels H.264 mobile DVR IGV-MB41043G Picture:

4 channels H.264 mobile DVR IGV-MB41043G Specitication:

Items	Model	IGV-MB4104-3G
System	Language	Chinese/English
	OSD	Graphical User interface(OSD menu)
	Password	Users Password/ Administrator Password
Vision	Video input	4-CH video input 1.0Vp-p,75Ω
	Video output	1-CH video output1.0Vp-p,75Ω
	Preview	Support 1 channel or synchronous 4 channels preview.
	Recording Ratio	PAL 25 Frame/s CCIR625 line, 50 field NTSC 30 Frame/s CCIR525 line, 60 field
	Image Compression	H.264 Main profile,
Audio	Audio input	4-ch Audio input600Ω
	Audio output	1-ch Audio output600Ω
	Recording mode	Audio & Video sync.
Image processing & storage	Video format	4-ch CIF: 25fps, or 1-ch D1: 25fps + 3CIF: 25fps,
	Video stream	ISO14496-10
	Video Rate(kbps)	CIF: 1536Kbps ~ 128Kbps,8 levels optional.Highest:1 level HD1: 2048Kbps ~ 380Kbps,8 levels optional. Highest:1 level D1: 2048Kbps ~ 400Kbps,8 levels optional. Highest:1 level
	Audio Bitrate	4Kbytes/s
	Storage	*SATA 2.5'' hard drive (support to 2T)and SD card storage(support to 64GB)*
Alarm	Alarm input	4 switching value
Alarm	Alarm output	1 alarm output, high level 12V output.
*Wireless Transmission*	*3G(EVDO/ WCDMA)*	*Built-in 3G(EVDO / WCDMA)module*
*GPS*	*Built-in GPS module, Geographic co-ordinates , speed can be read in coding flow,and can be wireless uploaded.*
Software	Analysis of PC playback	Video playback on PC,and analyse the vehicle info in the file.
Software	CMS	Video preview via GPS upload,alarm upload, central command and parameters configuration, etc.
Upgrade	*Support SD cards upgrade.*
