4 channels 960H DVR from China manufacturer - IGreenView Optoelectronic Co.,Ltd

Payment Terms:	T/T,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: IGV-HD4104

Production Capacity: 6000/month

Delivery Date: 7

Video Compression: H.264

Control Device: Front panel,USB mouse,IR re...

Hard Disk: 2 SATA port(Max 2 x 2048G)

Means of Transport: Ocean,Land,Air

Packing: OEM

Brand Name: IGreenView

Video Recording: 960H : PAL 1f/s-25f/s ...

Video Output: 2 channel TV output BNC,1 V...

1,100/120 fps realtime recording for 960H;
2,Support smart mobile and network (IE&Firefox&Safari&Chrome) real time remotely monitoring.

4 channels 960H DVR (IGV-HD4104) Features:

A: Support: Arabic,Czech,English,Finnish,Greek,Indonesian,Italian,,Japanese,Portuguese,Russian,Thai,T-Chinese,S-Chinese, Turkish,Brazilian,Bulgarian,Farsi,French,German,Hebrew,Hungarian,Polish,Romanian,Spanish,Swedish, Vietnamese

B:
Support smart mobile and network (IE&Firefox&Safari&Chrome) real time remotely monitoring,such as iPhone,Blackberry,Android,Nokia and windows mobile.

1. H.264 main profile compression algorithm ideal for standalone DVR

2. Realtime live display up to 4/8 cameras

3. Pentaplex function:live,recording,playback,backup & remote access;

4. Support Dual-streams,to make mobile monitoring very easy,flexible for network transmission

5. Multiple control methods:IR remote controller,USB mouse and front panel press button

6. Smart video detection:motion detection,video blind,video loss

7. Smart camera settings:privacy masking,camera lock,color setting,and title display

8. Pan Tilt Zoom and Speed Dome Control:more than 60 protocols supported ,preset,scan,auto pan,auto tour,pattern,auxiliary function supported

9. Easy backup methods: USB devices,remote network and client software backup

10. Alarm triggering screen tips,buzzer,PTZ preset,e-mail,snapshot &FTP upload

11. Smart HDDs Management:non-working HDD hibernationg,HDD faulty alarm,Raid function

12. Powerful network software:built-in web server,multi-DVR client &SMS Networking access for remote live viewing,recording,playback,setting,system status,event log,e-mail & ftp function

13. Support DHCP / PPPOE / FTP / DNS / DDNS / NTP / Email alarm / IP right management / IP search / network alarm center functions, support web client, standalone client and SDK.

14. With the sound system for the protection circuit, unique triple watchdog function, very low power consumption, to ensure the equipment never be hang up. With the unique black box technology, can monitor the whole run process of the equipment, can greatly reduce the maintenance costs.

15. Enable strong multi-way synchronization with max 4/8 channels playback, realize the zero-delay between playback channels

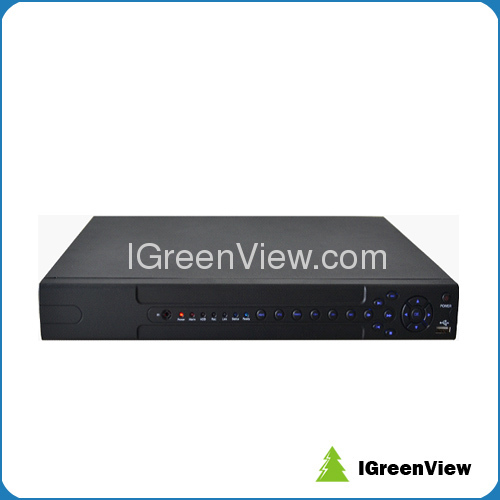

4 channels 960H DVR (IGV-HD4104) Picture:

Specification:

System	Model	IGV-HD4104	IGV-HD4108
	Main Processor	High performance embedded microprocessor
	Operating System	Embedded LINUX
	System Resources	Pentaplex function:live,recording,playback,backup & remote access
	User Interface	GUI,on-screen menu tips
	Control Device	Front panel,USB mouse,IR remote control
Video	Video Standards	PAL 625 line,50 f/s;NTSC 525 line,60 f/s
Video Compression	H.264 main profile
Video Recording	*960H:PAL 1f/s-25f/s NTSC 1f/s-30f/s;*
Motion Detection	Zones:64(8*8)detection zones,Sensitivity:1-6(6 is highest) Trigger recording,PTZ movement,tour,alarm,e-mail,snapshot& FTP
TV Output Adjustment	Adjust TV output color & display zone
Audio	Audio Compression	G711A
	Bidirectional Talk	Support
Record & Playback	Recording Mode	Manual>Alarm>Video Detection>Continuous
	Playback	Max 4/8 channels playback simultaneously, Pause,stop,rewind,fast play,slow play,next file,previous file,repeat,shuffle,backup selection
	Search Mode	Time/Date,Alarm,Motion Detection & exact search(accurate to second)
Storage & Backup	Space Occupation	Audio28.8MB/H/1ch Video: CIF: 4-5G/24hours/1ch Video:D1:16-20G/24hours/1ch Video:960H:9-42G/24hours/1ch
	HDD Management	Hard disk hibernation technology,HDD faulty alarm & Raid(Redundancy)
	Backup Mode	Network download/Flash stick
Interface	*Video Input*	*4 channel*		*8 channel*
Video Output	*2 channel TV output BNC,1 VGA output,1 HDMI(optional)*
Audio Input	4 channel
Audio Output	1 channel
Alarm Input	8 channel
Relay Output	1 channel
Net Interface	RJ-45 10M/100M			RJ-45 10M/100M/1000M
PTZ Control	1 RS485
USB Interface	2* USB2.0 port for mouse and backup
Hard Disk	2 SATA port(Max 2 x 2048G)
Power Supply	12V/4A
Environmental	Power Output	2 x 12V for cctv cameras and alarm sensors
	Power Consumption	<10W
	Working Temperature	0-55
	Working Humidity	10%-90%
	Atmosphere Pressure	86kpa-106kpa
	Dimension	35029045 mm
	Weight	3 kg
	Mounting	Desktop
