Passive UTP Video Balun Transceiver

Payment Terms: T/T,WU
Place of Origin: Guangdong, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: IGV-UTP01B
Production Capacity: 20000pcs/month
Delivery Date: 5 days
Transmission distance: 0-300 m
Impedance: Coax (BNC female) 75 Ohm; U...
Dimension: 47*15*16 mm
Means of Transport: Ocean,Land,Air
Packing: OEM
Brand Name: IGreenView / OEM
Signal Type: Video(PAL, NTSC, SECAM and ...
Connector: Coaxial BNC(male),twisted-p...

•Transmission distance up to 300m working with passive transceivers, up to 1200m woring with IGV-UTP120 active receivers.




1 Channel Passive UTP Video Balun Transceiver (IGV-UTP01B) Feature:
  • Real-time transmission of High-Definition video signals.
  • Transmission distance up to 300m working with passive transceivers, up to 1200m woring with HXVB-120R active receivers.
  • No power needed.
  • NTSC, PAL, SECAM video formats
  • Compact size and easy installation
  • Compatible with all qualified UTP cameras
  • ABS plastic shell fire, copper BNC connector, environmental terminal

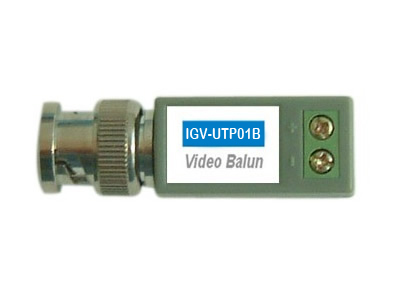

1 Channel Passive UTP Video Balun Transceiver (IGV-UTP01B) Picture:

1 Channel Passive UTP Video Balun Transceiver (IGV-UTP01B)Specification:
Transmission distance
0-300m
Signal Type
Video(PAL, NTSC, SECAM and other baseband video signal)
Connector
Coaxial BNC(male),twisted-pair terminal
Frequency response
DC to 6MHz
CMRR
0 to 6MHz 60dB (typical)
Impedance
Coax (BNC female) 75 Ohm; UTP (unshielded twisted pair) 100 ohms
Cable Type
Cat5 or Cat5e unshielded twisted pair
Cable Impedance
100 ± 20 ohms
Distributed capacitance
less than 62pF/m
DC loop resistance
18 Ohm/100m
Operating temperature
-20oC~70oC
Relative Humidity
0~95%(non-condensing)
Storage temperature
-40oC~150oC
Dimension
47 x 15 x 16 mm
Weight
20g

IGV-UTP01B is a high-definition AV signal passive UTP video balun transmitter which mainly used for security, education and other fields. It uses Cat5 or Cat5e as a transmission medium. It can real-time transmit 300 meters color or 600 meters black and white baseband video signal. its transmission distance will up to 1200m color signal or 1800m black and white signal if working with active receivers. it will save wiring costs, simplify your wiring works.
