B: "Effio" Series
"Effio" | "Effio-E" | |
Product Name | CXD4112AGG | CXD4127GG |
Wide dynamic range model for 960H CCD | Entry-level model for 960H CCD | |
System Configuration | CCD: 760H, 960H CCDs AFE: CXD4813GG DSP: "Effio" (CXD4112AGG) LPDDR | CCD: 510H, 760H, 960H CCDs AFE: CXD4816GG DSP: "Effio-E" (CXD4127GG) |
Key Features | ·Horizontal resolution of over 650 TVL ·Wide dynamic range ·2D and 3D noise reduction ·OSD ·Motion detection ·DC/Video servo ·Digital zoom ·Slow shutter ·Face detection ·Dual analog and digital outputs ·Synchronization: LL, VSL, VBSLHP/HR, HRVR | ·Horizontal resolution of over 650 TVL ·ATR (Adaptive Tone Reproduction) ·2D noise reduction ·Preset OSD menu (8 languages) ·Motion detection ·DC/Video servo ·Dual analog and digital outputs ·HLC (High light compensation) ·Low power consumption |

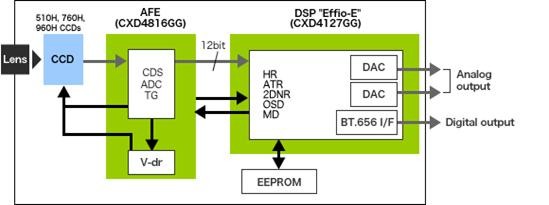

C: "Effio-E" System Block Diagram and Main Specification
Specifications | Item | "Effio-E" system |
Supported CCD | 510H, 760H, 960H CCD | |
System Configuration | 2 chips (DSP/AFE) | |
Main Functions | ||
Horizontal Resolution | Over 650 TVL | |
ATR | Yes | |
Noise Reduction | 2D-NR | |
Day & Night | Yes | |
Privacy Mask | 8 masks | |
HLC | Yes | |
AFD | Yes | |
Motion Detection | Yes | |
OSD Menu | 8 Languages | |
White Pixel Detection and Compensation | Static and Dynamic | |
Automatic Adjustment of Mechanical Iris | Yes | |
External Synchronization | Line-Lock | |
Outputs | Analog Output | Y/C Separate video, Composite video |
Digital Output | -ITU-R BT.656 Compliant (27MHz) -CCD image size (CCD drive frequency) | |
Dual Analog and Digital Outputs | Yes | |
Power Supply Voltages | CXD4127GG: 3.3V, 1.2V CXD4816GG: 3.3V, VH, VL | |
Packages | CXD4127GG: LFBGA 97Pin CXD4816GG: LFBGA 80Pin | |
